Brief introduction

    DLX-DVOPN Node Series Digital Video/Audio/Data Optic transmitter and Receiver adopts Optoelectronical Can-Bus cascaded technology to real time transmit each node’s Video, Audio, Data, Ethernet and Phone etc signals to Surveillance center by Single-fiber. Greatly Save user’s investment cost and increase the utilizing rate of fiber cable.

    Adopts TDM and CWDM technology ,The DLX-DVOPN Node type utilizing rate realized single fiber transmit 128chanels video and 1-32channels data,audio,1/0 integrated transmission. The Node type video optic transmitter will complex signal at the digital region of node and avoid video depletion of Analog video cascading. It is better for where fiber cable is limited and have many connection nodes.

    DLX-DVOPN adopts module design ,Supports function expand, Supports optical switch function, Auto-separate fault node and ensure other nodes working normally, use the pioneered optical auto-switch protection to improve reliability and stability of transmission. SNMP module optional, support manage remote end and local end transmitter and receiver. High level lightning protection design to make the equipment can be used in outdoor and other hard working environment.

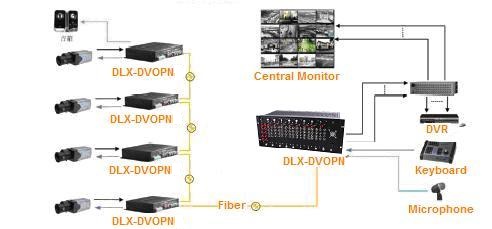

Application

● Adopts TDM,WDM/CWDM/DWDM optical cascaded connection, Non-destructive long-distance transmission

● Support base on SNMP standard e-MS network management system, easy to monitor and manage large-scale video transmission network

● Support Indicators for Power Supply, Branch Video, Optic-link and Data transmission

● Video

Connector: BNC

Bandwidth: 8MHz

Quantization: 8bits

DG: 1%typical

DP: 1typical SNR: >67dB

● Audio
