Product>Fiber Media Converter>Fiber media converter chassis
10/100M,10/100M/1000M Fiber Media Converter Chassis(Rack)
Brief introduction
DLX-814/816 Series Unmanaged Fiber Media Converter Chassis adopts 19-inch and 2U international standard and is designed for centralized management of computer room. DLX-814 supports Max.14 pieces of DLX-850/850G series 100M or 1000M Gigabit standalone fiber media converter and DLX-816 supports Max.16 pieces of DLX-850K/850GK series 100M or 1000M Gigabit card type fiber media converter. Adopts redundant double-source power supply design, ensuring more reliable working. Besides, It supports symmetrical load function and excessive electric current or voltage defensive function. Made from quality steel and equipped with double fans, good heat elimination can be assured.
Product feature
● Double-source power supply, ensuring more reliable and more stable working
●
Adopts modular design, easy to maintenance
● 14-slots/16slots structures system
● Metal structure, supports good electromagnetic shielding
● Supports hot insert and pull
● Equipped with double fans, good heat elimination can be assured
Technologies reference
●
Operating temperature: 0℃-50℃
● Storage temperature: -40℃-70℃
● Environment humidity: 5-90%(non-condensing)
● Power parameters: input power 100V~220V AC or 48V DC
● Dimension: 482mm x 229mm x 90mm

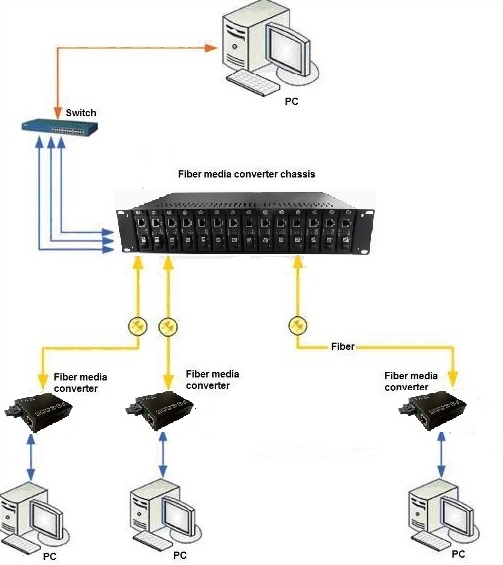

Application
