Product>Fiber Ethernet Switch>Gigabit Fiber Aggregation Media Converter
Gigabit Fiber Aggregation Media Converter(Switch)
Brief introduction
DLX-FA series Gigabit fiber aggregation media converter adopts Newest high-performance chip. Supports 8~24 1000M Fiber optical pots and 2~8 10/100/1000M Ethernet ports. Suit to different connection of Gigabit Network and flexible configuration network according to demand. Compatible with all Ethernet devices.
Application
● High-definition IP video surveillance and power supply
● High Way& Road surveillance system, Capture system
● Video-surveillance system of large factories and mines systems
●
IP Network Multi-function system
● High Way & Toll Station Surveillance
● Public Security Surveillance
● Surveillance and cable TV system
● Intelligent traffic monitoring system
● High Quality Video Conference
● Building talkback, Intelligent community and Smart home system
● Long-distance multimedia teaching
● Industrial Closed Circuit Television Surveillance
Feature
● 8~24 1000M Fiber optical pots and 2~8 10/100/1000M Ethernet ports optional
● Backplane bandwidth Max.56Gbps, All ports support non-blocking and full line speed forwarding
● Support connect to Metropolitan Area Network(MAN) directly
● Support 802.1x User authentication
● Powerful ACL, support L2-L7 data filter
● Ports-MAC-IP Multi-Binding
● ARP intrusion detection to Prevent ARP spoofing attacks by hackers
● Adopt Cluster Technology to stack devices, use centralized management of IP addresses, save address resources
● Support multiple network management, like: SNMP, Web browser, Telnet and RS232 Console
● Support Broad Drictor, HP Open View, Cisco Works 2000 etc. Network management protocol
● Support QoS and IP Multicast
●
Support port Aggregation, port mirroring, port configuration
● Auto-negotiate to NIC/HUB and MDI/MDI-X
● Anti-lightning and ESD protection for all Ethernet ports, power ports
● Support IGM detection and BSTM broadcast storm-control setting
● Indicators for Power Supply, Ethernet etc.
● Support line speed switching of all ports and in 64~1536 frame length can reach line speed
● Transmission distance: 500M(multi-mode),20km,40km,60km,80KM optional(Single-mode)
Specification
|
Wavelength |
MM:850/1310nm,SM:1310/1550nm,DFB:1260~1610nm |
|
Number of fiber |
Single fiber or Duplex fiber |
|
Receiving Sensitivity |
≤-26dBm |
|
Bandwidth of Single wavelength |
1.25G |
|
Transmission distance |
500M(MM),20km/40km/60km/80km(SM) |
|
Max.optic budget |
15dbm/20dbm/25dbm/30dbm |
|
Connector |
SFP LC |
|
Ethernet port |
RJ45,10/100M/1000M auto-negotiation, Full-duplex/Half-duplex |
|
Standard |
IEEE 802.3,IEEE 802.3x, IEEE 802.3z,IEEE 802.3u,IEEE 802.3ab,IEEE802.3x,IEEE 802.1D-2004 STP,IEEE 802.1w Rap d STP,IEEE 802.1Q VLAN Tag, IEEE 802.1p CoS, IEEE 802.1X, IEEE 802.3ad |
|
Control |
IEE802.3X/IEE802.3Z and Full-duplex/Half-duplex |
|
QinQ |
Yes |
|
QoS |
QoS, Head Of Line, Best-Effort Service, Differentiated Service, Strict Priorty, Weighted Round Robin, First come first served, TOS, RTS |
|
Bridge Connection |
IEEE 802.1D-1998 STP, IEEE 802.1w（RSTP）, IEEE 802.1s （MSTP）etc. |
|
Management protocol |
GVRP，SNMPv 1/v2c/v3，DHCP Clent ，TFTP，SMTP，RMON，HTTP，HTTPS, Telnet，Syslog，GVRP SSH,SNMP Inform, LLDP, SNTP Server/Clent, PVLA |
|
Switching |
Priority queue:4,VLAN:256,VLAN ID:1~4094, Number of multicast groups:256,MAC address:8K,Packet buffer:1Mbt,Packet forwarding rate:5.3Mpps,Switching delay:<5μs |
|
Temperature |
Operation:0℃~+50℃, Storage: -40℃~+70℃ |
|
Humidity |
5%—95% |
|
Dimension |
440(L) x 250(W) x 44(H)mm |
|
Power supply |
100-260V AC |

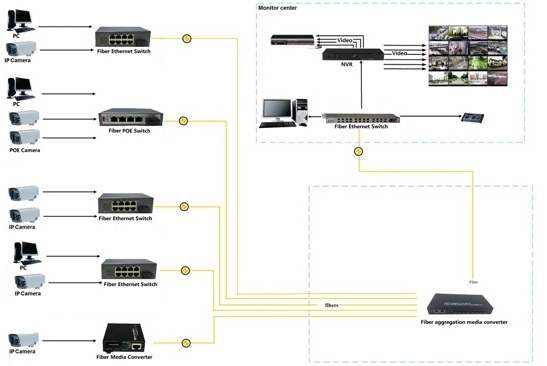

Typical Application
-----------------------------------------------------------------------------------------------------------------------------------------------------------
Types for order, Please find in the PDF file
