Product>A/V Fiber Converter>Convergence Fiber Optic Transmitter and Receiver
Convergence Fiber Optic Transmitter and Receiver
Brief introduction
DLX-DVOPC Optical Convergence type Fiber Optic Transmitter and Receiver adopts passive optical components, converge optical signals to one fiber by wavelength-division. it can transmit 16channels optical signals at most, and the bandwidth of each optical signal is 2.5GHz Max. Optical Convergence type Fiber Optic Transmitter and Receiver finish the converge or separate on the optical layer. No need convert to electric signal which will decrease the signal’s attenuation. So the optical signals are free from disturbances in the transmission and good for the long-distance transmission on large capacity.
DLX-DVOPC Electric Convergence type Fiber Optic Transmitter and Receiver can transmit up to 8channels optical signals over one fiber(one channel optical signal support 1-8channels video).All videos will been recovered in the end of receiver.
DLX-DVOPC Convergence type Fiber Optic Transmitter and Receiver been used for save fibers. High stability, easy to manage and install.
Application
●
High Way & Toll Station Surveillance.jpg)
● Public Security Surveillance
● Surveillance and cable TV system
● Intelligent traffic monitoring system
● High Quality Video Conference
● Broadcast and TV program transmission
● Long-distance multimedia teaching
● Industrial Closed Circuit Television Surveillance
Feature
● High-quality optical components for ensure the reliability, uniformity and stability
● No intermodulation interference of analog optical transmitter and receiver
● No EMI, RFI, and Loop of sharing the ground
● Using industrial grade components to assure the stability and reliability while longtime work
● Auto PAL/NTSC/SECAM Compatible
● Data signal support RS232,RS458,RS422,Manchester and Biphase
● In the budget arrange, SNR >67db
● Indicators for Power Supply, Video, Optic-link and Data-loop
● Advanced Audio, data auto-negotiation technology, don’t need adjust for various audio, data signals
● Support base on SNMP standard e-MS network management system, easy to monitor and manage large-scale video transmission network
● The longest transmission distance is more than 100KM(between two points)
● Support plug and play
● Module design, easy to add the operation channels
● Card type, standalone type,19” 1U/2U/4U Rack type optional
Specification
Optical index of Optical Convergence
|
Wavelength |
Simplemodule:1310nm/1550nm, Multimode:850nm/1310nm |
|
Number of fiber |
Single fiber bi-direction |
|
Output power |
-9dBm/-5dBm |
|
Transmission distance |
0-100KM |
|
Receiving Sensitivity |
More than -36dBm |
|
Connector |
FC/SC/ST/LC |
Video
|
Channel |
1-128 |
|
Connector |
BNC |
|
Bandwidth |
8MHz |
|
Quantization |
8 bits |
|
DG |
1% typical |
|
DP |
1° typical |
|
SNR |
>67dB |
Audio (optional)
Audio
Input/output impedance
600ohm(balanced)
or 10Kohm(unbalanced)
Digitization
24bit
Bandwidth
20Hz to 20KHz
Nonlinear
distortion coefficient
≤ 1%
SNR
>85dB
Connector
Terminal Plug
with screw clamps/RCA/XLR
Data (optional)
Interface Type
RS-232/485/422,
Manchester, Biphase
Operation Mode
Full-duplex/Half-duplex
Data Rate
DC-384Kbps/DC-2Mbps
BER
<10E-9
Connector
RJ45/ Terminal
Plug with screw clamps
Ethernet (optional)
Operation Mode
10/100M,Full-duplex/Half-duplex
Self-adaptive
Throughput Ration
100%@10M
Packet Loss Ratio
0%
Connector
RJ45
Alarm,1/0 (optional)
Alarm,1/0 input signal
Any Active or Passive alarm,1/0 input.
Support TTL,RS-232/422/485 or Passive switch button
Alarm,1/0 output signal
Any Active or Passive alarm,1/0 output.
Support TTL,RS-232/422/485 or repeater output connection
Connector
RJ45/ Terminal Plug with screw clamps
E1,T1 (optional)
Code
HDB3/AMI
Speed
E1/T1 standard
speed or E1/T1 sub-speed
Connector
75ohm BNC or
120ohm RJ45
Telephone, PBX (optional)
Voice bandwidth
8KHZ
Code
PCM
Signal control
Support any
signal of analog phone or switch
Connector
RJ11
Environmental
Operation temperature
-30℃~+75℃
Storage temperature
-40℃~+85℃
Relative humidity
0-95% Non-Condensing
MTBF
≥10e5
hours
Power Supply
AC 100V~260V or DC 48V
Physical Dimensions
Optical Convergence type
196(L) x 155(W) x 45(H)mm
Electric Convergence type
480(L) x 250(W) x 45(H)mm Typical Application

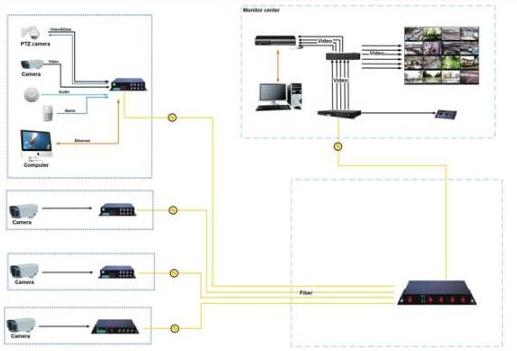

Types for order, Please find in the PDF file
-----------------------------------------------------------------------------------------------------------------------------------------------------------
