Product>A/V Fiber Converter>Video Audio Data Fiber Converter Chassis
Digital Video/Audio/Data Fiber Optical transmitter and Receiver Chassis
Brief introduction
DLX-DVOP4R is 19inch width, 4.5U height,21slots,can be mix-inserted 21pieces of 1ch-4ch video/audio/data optic receiver or10pieces 5ch-8ch video/audio/data optic receiver. support 1+1 redundant power. Up to 84channels videos can been received if adopt 4ch or 8ch type video/audio/data receiver.
DLX-DVOP2R is 19inch width,2.5U height,21slots,can be inserted 21pieces of MINI1ch video/audio/data optic receiver. support 1+1 redundant power. Up to 21channels videos can been received.
Application
● High Way & Toll Station Surveillance
● Public Security Surveillance
●
Surveillance and cable TV system
● Intelligent traffic monitoring system
● High Quality Video Conference
● Broadcast and TV program transmission
● Long-distance multimedia teaching
● Industrial Closed Circuit Television Surveillance
Feature
● 2.5U or 4.5U height,19inch width, whole alumnium structure
● 21slots for video/audio/data fiber converter card
● 2.5U rack support 21pieces Mini video/audio/data fiber converter card
● 4.5U rack support 21pieces 1ch-4ch type video/audio/data fiber converter card or 10pieces 5ch-8ch video/audio/data fiber converter card
● Modularized and industrialized design ensuring reliability and flexibility
● Multi-services Flexible Configuration on the Same Platform
● Indicators for Power Supply, Video, Optic-link and Data-loop
● Free from In-field Adjustment
● Flexible and Easy Mount
● Protection against lightening strike and surge
● Support single power supply or 1+1 redundant power supply
● Dimension: 2.5U rack 480(L) x 290(W) x 112(H)mm, 4.5U rack 480(L) x 290(W) x 200(H)mm

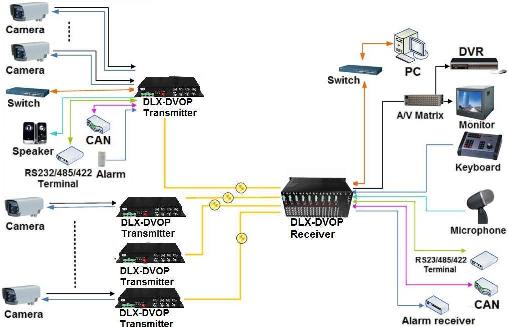

Typical Application
-----------------------------------------------------------------------------------------------------------------------------------------------------------
Types for order, Please find in the PDF file
