Product>POE Fiber Converter>10/100M POE Fiber Media Converter
10/100M POE Fiber Media Converter
Brief introduction
DLX-PFS01 series POE 10/100M POE Ethernet Fiber Media Converter is a kind of media converter with the function of photoelectricity switchover between 10Base-T twisted-pair and 10Base-FL optical cable or between 100Base-TX twisted-pair and 100Base-FX optical cable. Provide up to 30 watts of power per-port, and can be used to power IEEE802.3AF/IEEE 802.3AT compliant devices (PD) through an Ethernet cable eliminating the need for additional wiring. It can extend the transmission distance of conventional 10M Ethernet or 100M Fast Ethernet to 120KM via the Fast Ethernet Fiber-optical Line. It can realize the connection between terminal and server, repeaters, hub, exchanger or terminal easily. Realizes plug and play in the condition of without setup and drive.
Application
●
High-definition IP video surveillance and power supply
● High Way& Road surveillance system, Capture system
● Video-surveillance system of large factories and mines systems
● IP Network Multi-function system
● High Way & Toll Station Surveillance
● Public Security Surveillance
● Surveillance and cable TV system
● Intelligent traffic monitoring system
● High Quality Video Conference
● Building talkback, Intelligent community and Smart home system
● Long-distance multimedia teaching
● Industrial Closed Circuit Television Surveillance
Feature
● Adopts import industry PSE chip and Taiwan YDS transformer
● Single port full-power technology, and single port supports Max.30W
● Supports IEEE802.3AF and IEEE802.3AT protocol, Auto-detect and recognize IEEE 802.3AF/IEEE 802.3AT standard PD(Powered Devices) and feeds power to it
● Supports smart power management, if the power of PD over 53W, the system will stop feeds low-priority devices
● Supports Auto-standby mode and cable distance detection management, if no devices been connected, then auto-standby to save energy, if cable distance less than 10meters,then will use Lower transmission power
● Smart POE auto-recognized system to protect devices from overflow current and over -voltage etc.
● 1/2/3/6 lines or 4/5/7/8 lines power supply optional, supports all PD devices
● Anti-lightning and ESD protection for all Ethernet ports, power ports
● Immersion gold PCB board, Industry grade components
● Multi-services Flexible Configuration on the Same Platform
● Auto-negotiate to NIC/HUB and MDI/MDI-X
● Support VLAN Network isolation and BSTM broadcast storm-control
● Indicators for Power Supply, Ethernet etc
● Supports line speed switching of all ports and within 64~1536 frame length can reach line speed
● Standard: Full-duplex adopts IEEE 802.3x standard, Half-duplex adopts Back pressure standard
● Max.150meters power feed
● Transmission distance: 2km(multi-mode),20km,40km,60km,80KM,100km,120km optional(Single-mode)
Specification
|
Wavelength |
MM:850/1310nm,SM:1310/1550nm,DFB:1260~1610nm |
|
Number of fiber |
Single fiber or Duplex fiber |
|
Receiving Sensitivity |
≤-26dBm |
|
Bandwidth of Single wavelength |
155Mbps |
|
Transmission distance |
2km(MM),20km/40km/60km/80km/100km/120km(SM) |
|
Max.optic budget |
15dbm/20dbm/25dbm/30dbm |
|
Connector |
SC(FC/ST/LC optional) |
|
Ethernet port |
RJ45,10/100M auto-negotiation, Full-duplex/Half-duplex |
|
Standard |
IEEE 802.3i,IEEE 802.3u,IEEE 802.3x Flow Control,IEEE 802.1af DTE Power via MDI |
|
Control |
IEE802.3X and Full-duplex/Half-duplex |
|
Temperature |
Operation:-20℃~+70℃, Storage: -40℃~+80℃ |
|
Humidity |
Operation: 10%—90%, Storage: 5%—95% |
|
Dimension |
95(L) x 75(W) x 28(H)mm |
|
Power supply |
48V DC |

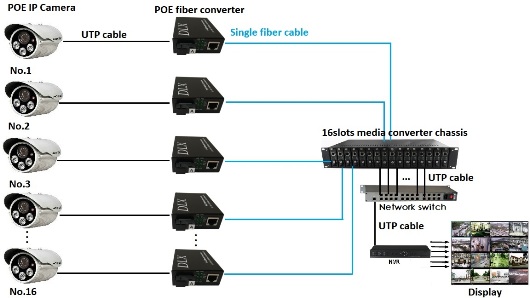

Typical Application
-----------------------------------------------------------------------------------------------------------------------------------------------------------
Types for order, Please find in the PDF file
